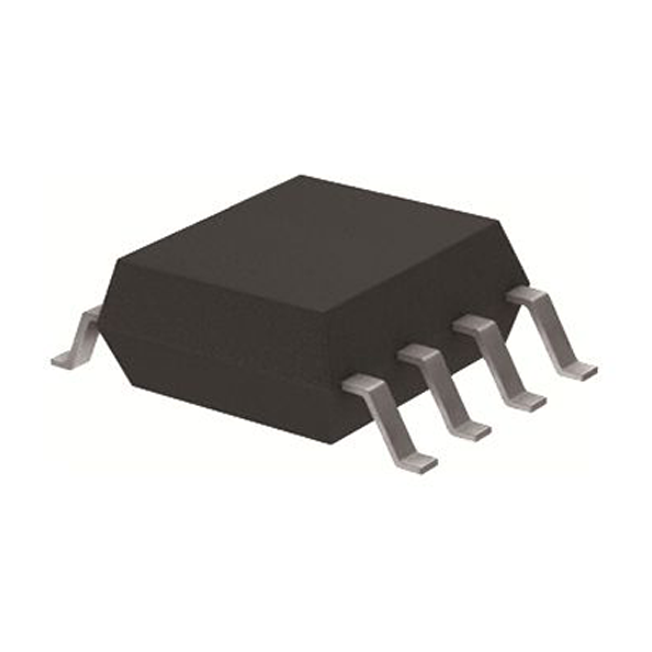

IR2166STRPBF.
IR2166STRPBF. - Brand New IR IC Chips
Credit Card - One-month free return and one year warranty.
- Full or Partial Refund, if the item is not as described
- Full Refund if you don't receive your order
Description
The IR2166 is a fully integrated, fully protected 600V ballast control IC designed to drive all types of fluorescent lamps. PFC circuitry operates in critical conduction mode and provides for high PF, low THD and DC Bus regulation. The IR2166 features in clude programmable preheat and run frequencies, programmable preheat time, programmable dead-time, programmable over-current protection, and programmable end of-life protection. Comprehensive protection features such as protection from failure of a lamp to strike, filament failures, end-of-life protection, DC bus undervoltage reset as well as an automatic restart function, have been included in the design. The IR2166 is available in both 16-lead PDIP and 16-lead (narrow body) SOIC packages.
Features
• PFC, Ballast control and half-bridge driver in one IC
• Critical conduction mode boost type PFC
• No PFC current sense resistor required
• Programmable preheat frequency
• Programmable preheat time
• Programmable run frequency
• Programmable over-current protection
• Programmable end-of-life protection
• Programmable dead time
• Internal ignition ramp
• Internal fault counter
• DC bus under-voltage reset
• Shutdown pin with hysteresis
• Internal 15.6V zener clamp diode on Vcc
• Micropower startup (150µA)
• Latch immunity and ESD protection
• Parts also available LEAD-FREE
