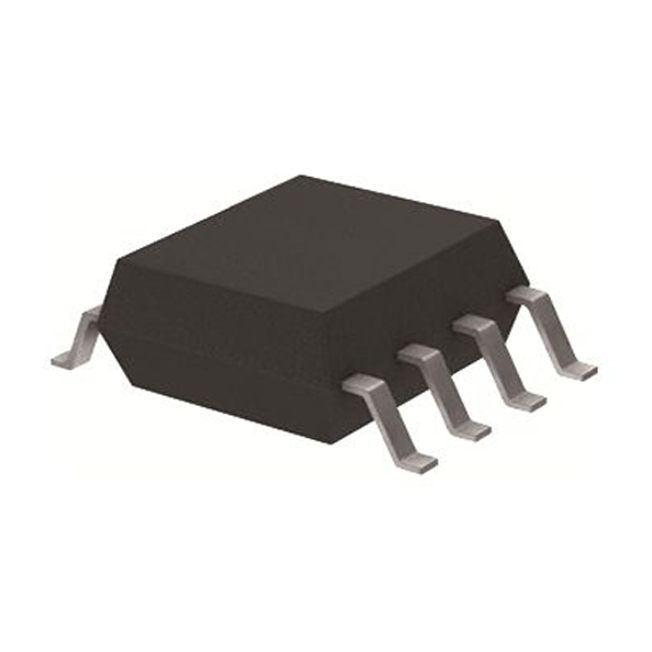

MAX1954EUB
MAX1954EUB - Brand New Maxim Integrated DC DC Switching Controllers
Credit Card - One-month free return and one year warranty.
- Full or Partial Refund, if the item is not as described
- Full Refund if you don't receive your order
General Description
The MAX1953/MAX1954/MAX1957 is a family of versatile, economical, synchronous current-mode, pulse-width modulation (PWM) buck controllers. These step-down controllers are targeted for applications where cost and size are critical.
Features
♦ Low-Cost Current-Mode Controllers
♦ Fixed-Frequency PWM
♦ MAX1953 1MHz Switching Frequency Small Component Size, Low Cost Adjustable
Current Limit
♦ MAX1954 3V to 13.2V Input Voltage 25A Output Current Capability 93%
Efficiency 300kHz Switching Frequency
♦ MAX1957 Tracking 0.4V to 0.86VIN Output Voltage Range Sinking and Sourcing
Capability of 3A
♦ Shutdown Feature
♦ All N-Channel MOSFET Design for Low Cost
♦ No Current-Sense Resistor Needed
♦ Internal Digital† Soft-Start
♦ Thermal Overload Protection
♦ Small 10-Pin µMAX Package
Applications
Printers and Scanners
Graphic Cards and Video Cards
PCs and Servers
Microprocessor Core Supply
Low-Voltage Distributed Power
Telecommunications and Networking
